Local Computer Vision with Roboflow

Complete guide to local computer vision on the Jetson Orin Nano Field Kit using Roboflow Inference Server

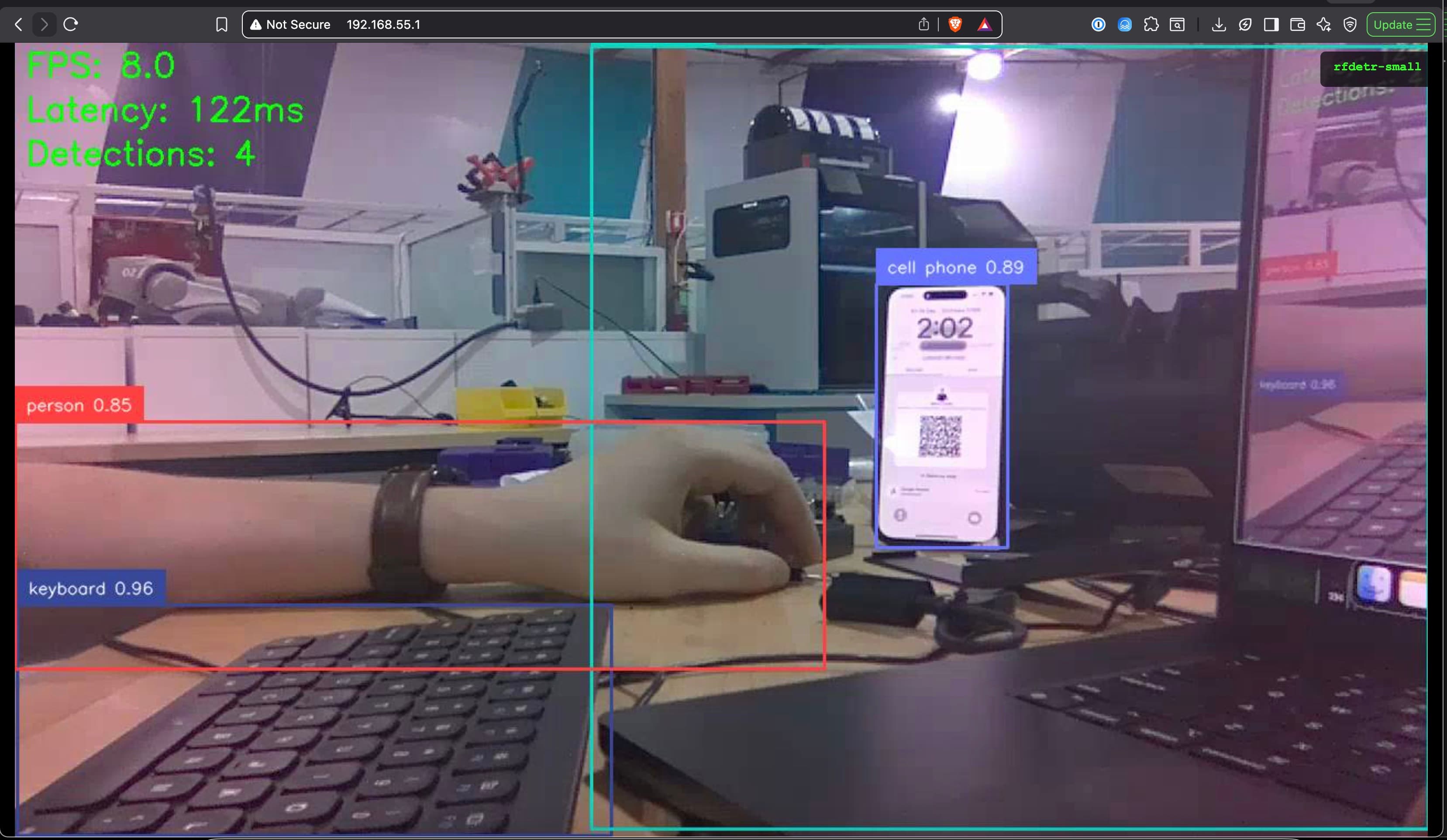

Real-time Object Detection with Roboflow

Introduction

The Jetson Orin Nano Field Kit is optimized for computer vision workloads. With its powerful GPU and integrated camera support, you can build sophisticated vision applications ranging from object detection to real-time video processing.

The Field Kit includes a pre-configured Roboflow Inference Server running locally - providing GPU-accelerated object detection and segmentation without requiring internet connectivity after initial setup. This makes it perfect for edge deployments where you need powerful computer vision capabilities offline.

Camera Setup

Dual IMX219 Stereo Cameras

The Field Kit includes dual IMX219 stereo cameras configured for stereo vision:

CAM0 (Left camera) - /dev/video0
CAM1 (Right camera) - /dev/video1
Both cameras stream at 1280x720 @ 30fps via MediaMTX RTSP server

Additional Camera Support

The system also supports:

USB Webcams - Standard USB 2.0/3.0 cameras
Other CSI Cameras - MIPI CSI-2 compatible cameras

Camera Configuration

List available cameras:

v4l2-ctl --list-devices

Expected output for dual IMX219 setup:

vi-output, imx219 9-0010 (platform:tegra-capture-vi:2):
    /dev/video0

vi-output, imx219 10-0010 (platform:tegra-capture-vi:1):
    /dev/video1

Check camera capabilities:

# Check camera 0
v4l2-ctl --device=/dev/video0 --list-formats-ext

# Check camera 1
v4l2-ctl --device=/dev/video1 --list-formats-ext

Capture test images:

# Capture from camera 0 (left)
nvgstcapture-1.0 --sensor-id=0 --orientation=2 --image-res=2 --file-name=/tmp/test_cam0.jpg

# Capture from camera 1 (right)
nvgstcapture-1.0 --sensor-id=1 --orientation=2 --image-res=2 --file-name=/tmp/test_cam1.jpg

RTSP Streaming with MediaMTX

The Field Kit includes MediaMTX for RTSP/WebRTC streaming:

Available Streams:

Camera 0: rtsp://<JETSON_IP>:8554/cam0 (RTSP), http://<JETSON_IP>:8888/cam0 (HLS), http://<JETSON_IP>:8889/cam0 (WebRTC)
Camera 1: rtsp://<JETSON_IP>:8554/cam1 (RTSP), http://<JETSON_IP>:8888/cam1 (HLS), http://<JETSON_IP>:8889/cam1 (WebRTC)

Start MediaMTX service:

sudo systemctl start mediamtx.service
sudo systemctl enable mediamtx.service  # Enable on boot

View streams:

# Using VLC
vlc rtsp://localhost:8554/cam0

# Using FFplay
ffplay -rtsp_transport tcp rtsp://localhost:8554/cam0

# In web browser
# Open: http://<JETSON_IP>:8888/cam0

OpenCV Setup

Pre-installed OpenCV

The Field Kit comes with OpenCV 4.12.0 built with CUDA support pre-installed. This provides GPU-accelerated operations.

Verify installation:

python3 -c "import cv2; print(cv2.__version__)"
# Should show: 4.12.0

# Check CUDA support
python3 -c "import cv2; print(cv2.cuda.getCudaEnabledDeviceCount())"
# Should show: 1 (CUDA device available)

Note: The pre-installed OpenCV includes:

CUDA acceleration (OPENCV_DNN_CUDA=ON)
GStreamer support
Python 3 bindings
All contrib modules

Basic Camera Capture

import cv2

# Open camera
cap = cv2.VideoCapture(0)

if not cap.isOpened():
    print("Error: Could not open camera")
    exit()

# Set resolution
cap.set(cv2.CAP_PROP_FRAME_WIDTH, 1920)
cap.set(cv2.CAP_PROP_FRAME_HEIGHT, 1080)

# Capture frame
ret, frame = cap.read()

if ret:
    cv2.imwrite('/tmp/capture.jpg', frame)
    print("Image saved to /tmp/capture.jpg")

cap.release()

Vision Models

TensorRT Optimization

For best performance, use TensorRT to optimize your models:

import tensorrt as trt
import pycuda.driver as cuda
import pycuda.autoinit
import numpy as np

# Load and optimize model with TensorRT
# (Example structure - actual implementation depends on your model)

Roboflow Local Inference

Roboflow is the primary computer vision platform for the Field Kit. The Field Kit includes a pre-configured Roboflow Inference Server running locally on your Jetson, providing GPU-accelerated object detection and segmentation without requiring internet connectivity after initial setup.

Roboflow provides state-of-the-art models including YOLOv11, RF-DETR, and segmentation models, all optimized for edge deployment with TensorRT acceleration. The inference server runs as a Docker container and exposes a simple REST API for easy integration into your applications.

Overview

The Roboflow Inference Server runs as a Docker container and provides:

GPU-accelerated inference using TensorRT, CUDA, and CPU execution providers
Local model caching - models are downloaded once and cached for offline use
REST API for easy integration with your applications
Multiple model architectures - YOLOv8, YOLOv11, RF-DETR, and segmentation models
Real-time performance - optimized for edge deployment

Pre-installed Models

The Field Kit comes with 8 pre-installed models ready to use immediately:

Object Detection Models (7 models):

Model	Description	Speed	Accuracy	Use Case
`yolov11n-640`	YOLOv11 Nano 640x640	⚡⚡⚡ Fastest	Good	Real-time detection, low latency
`yolov11s-640`	YOLOv11 Small 640x640	⚡⚡ Fast	Better	Balanced speed/accuracy
`yolov8n-640`	YOLOv8 Nano 640x640	⚡⚡⚡ Fastest	Good	Legacy YOLOv8 support
`yolov8s-640`	YOLOv8 Small 640x640	⚡⚡ Fast	Better	Balanced performance
`rfdetr-nano`	RF-DETR Nano	⚡⚡⚡ Fast	Excellent	High accuracy, fast inference
`rfdetr-small`	RF-DETR Small	⚡⚡ Fast	⭐ Best	Highest accuracy
`rfdetr-medium`	RF-DETR Medium	⚡ Moderate	⭐⭐⭐ Best	Maximum accuracy

Segmentation Models (1 model):

Model	Description	Speed	Use Case
`yolov11n-seg-640`	YOLOv11 Nano Segmentation	⚡⚡ Fast	Instance segmentation, pixel-level masks

Note: These 8 models are pre-downloaded and cached locally. Additional models (YOLOv10, YOLOv8 Medium, more segmentation variants) can be downloaded using the download_models.py script. See Downloading Additional Models below.

Starting the Roboflow Inference Server

The Roboflow Inference Server runs as a Docker container. It's configured to start automatically, but you can manage it manually:

Check Status:

# Check if service is running
sudo systemctl status roboflow.service

# Check Docker container
docker ps | grep roboflow

Start the Server:

# Start via systemd service
sudo systemctl start roboflow.service

# Or start manually via Docker
sudo docker run -d \
  --name rf-inference \
  --runtime nvidia \
  --read-only \
  --tmpfs /tmp:rw,noexec,nosuid,size=256m \
  -p 9001:9001 \
  -v /home/box/roboflow-cache:/cache:rw \
  --security-opt="no-new-privileges" \
  --cap-drop="ALL" \
  --cap-add="NET_BIND_SERVICE" \
  -e MODEL_CACHE_DIR="/cache" \
  -e MPLCONFIGDIR="/tmp/matplotlib" \
  -e "ONNXRUNTIME_EXECUTION_PROVIDERS=[TensorrtExecutionProvider,CUDAExecutionProvider,CPUExecutionProvider]" \
  -e METRICS_ENABLED=false \
  -e ENABLE_BUILDER=True \
  roboflow/roboflow-inference-server-jetson-6.2.0:latest

Verify Server is Running:

# Check if server responds
curl http://localhost:9001/health

# List available models (after they're loaded)
curl http://localhost:9001/info

Using Roboflow Models

Python API

Basic Inference:

from inference_sdk import InferenceHTTPClient

# Initialize client (no API key needed for local server)
client = InferenceHTTPClient(api_url="http://localhost:9001")

# Run inference on an image file
result = client.infer(
    inference_input="/path/to/image.jpg",
    model_id="yolov11n-640"
)

# Process results
for prediction in result.get("predictions", []):
    print(f"Class: {prediction['class']}")
    print(f"Confidence: {prediction['confidence']:.2f}")
    print(f"Bounding box: {prediction['x']}, {prediction['y']}, {prediction['width']}, {prediction['height']}")

Inference on RTSP Stream:

from inference_sdk import InferenceHTTPClient

client = InferenceHTTPClient(api_url="http://localhost:9001")

# Run inference on RTSP camera stream
result = client.infer(
    inference_input="rtsp://localhost:8554/cam0",
    model_id="rfdetr-small"
)

print(result)

With Confidence Threshold:

result = client.infer(
    inference_input="/path/to/image.jpg",
    model_id="yolov11n-640",
    confidence=0.5  # Only return detections with >50% confidence
)

REST API

Using curl:

# Inference on image file
curl -X POST http://localhost:9001/infer/yolov11n-640 \
  -F "image=@/path/to/image.jpg"

# Inference on image URL
curl -X POST http://localhost:9001/infer/yolov11n-640 \
  -H "Content-Type: application/json" \
  -d '{"image": {"type": "url", "value": "https://example.com/image.jpg"}}'

# Inference on RTSP stream
curl -X POST http://localhost:9001/infer/rfdetr-small \
  -H "Content-Type: application/json" \
  -d '{"image": {"type": "rtsp", "value": "rtsp://localhost:8554/cam0"}}'

Response Format:

{
  "predictions": [
    {
      "class": "person",
      "confidence": 0.95,
      "x": 100,
      "y": 150,
      "width": 200,
      "height": 300
    }
  ],
  "time": 0.023
}

Real-time Web Streaming

The Field Kit includes a web streaming application that displays real-time inference results in your browser:

Start Web Stream:

cd jetson-orin-nano-field-kit/apps/vision/roboflow
source venv/bin/activate

# Use default settings (yolov11n-640, cam0, port 5000)
python run_roboflow_web_stream.py

# Customize model and settings
python run_roboflow_web_stream.py \
  --model rfdetr-small \
  --rtsp-url rtsp://127.0.0.1:8554/cam0 \
  --confidence 0.7 \
  --port 8080

Access the Stream:

Open your browser: http://<JETSON_IP>:5000
View real-time object detection with bounding boxes and labels
See FPS, latency, and detection count overlays
IMU sensor visualization (if available)

Web Stream Features:

Real-time MJPEG streaming - Low latency video feed
Live annotations - Bounding boxes and labels drawn on video
Performance metrics - FPS and latency displayed
IMU integration - 3D orientation visualization (if IMU sensor connected)
Model switching - Change models without restarting

Command Line Options:

python run_roboflow_web_stream.py --help

Options:
  --model MODEL_ID          Model to use (default: yolov11n-640)
  --rtsp-url URL            RTSP stream URL (default: rtsp://127.0.0.1:8554/cam0)
  --confidence THRESHOLD    Confidence threshold 0.0-1.0 (default: 0.5)
  --port PORT               Web server port (default: 5000)
  --inference-server URL    Inference server URL (default: http://localhost:9001)
  --no-imu                  Disable IMU sensor overlay

Downloading Additional Models

The Field Kit includes a script to download and cache additional models:

Download Pre-configured Models:

cd jetson-orin-nano-field-kit/apps/vision/roboflow
source venv/bin/activate

# Download all models from the pre-configured list
python download_models.py \
  --api-url http://localhost:9001 \
  --cache-dir /home/box/roboflow-cache

Available Models to Download:

yolov10n-640, yolov10s-640 - YOLOv10 models
yolov8m-640 - YOLOv8 Medium
yolov8n-seg-640, yolov8s-seg-640 - YOLOv8 segmentation
yolov11s-seg-640 - YOLOv11 Small segmentation

Check Downloaded Models:

# List models in cache
python download_models.py --list

# Output shows:
# - State file location
# - Cache directory
# - Cache size
# - List of downloaded models

Remove Models from Cache:

# Remove specific models (frees disk space, but keeps cache files)
python download_models.py --remove yolov8m-640 yolov10n-640

Testing Models

Test any model with a simple script:

cd jetson-orin-nano-field-kit/apps/vision/roboflow
source venv/bin/activate

# Test a model with an image
python test_model.py \
  --model rfdetr-small \
  --image test.jpg \
  --url http://localhost:9001 \
  --conf 0.5

Output includes:

Model loading status
Inference results
Detection details (class, confidence, bounding boxes)
Raw JSON response

Model Selection Guide

Choose the Right Model:

For Real-time Applications (30+ FPS):
- Use: yolov11n-640 or yolov8n-640
- Best for: Live video streams, low latency requirements
For Balanced Performance (15-30 FPS):
- Use: yolov11s-640, yolov8s-640, or rfdetr-nano
- Best for: General purpose detection, good accuracy/speed trade-off
For Maximum Accuracy (10-20 FPS):
- Use: rfdetr-small or rfdetr-medium
- Best for: Critical applications where accuracy matters most
For Segmentation Tasks:
- Use: yolov11n-seg-640 or yolov11s-seg-640
- Best for: Pixel-level masks, instance segmentation

Performance Comparison:

Model	FPS (approx)	mAP (COCO)	Memory
yolov11n-640	40-50	38.5	Low
yolov11s-640	25-35	44.5	Medium
rfdetr-nano	30-40	42.0	Low
rfdetr-small	20-30	47.5	Medium
rfdetr-medium	15-25	50.2	High

Integration Examples

With OpenCV:

import cv2
from inference_sdk import InferenceHTTPClient

client = InferenceHTTPClient(api_url="http://localhost:9001")

cap = cv2.VideoCapture("rtsp://localhost:8554/cam0")

while True:
    ret, frame = cap.read()
    if not ret:
        break

    # Run inference
    result = client.infer(frame, model_id="yolov11n-640")

    # Draw bounding boxes
    for pred in result.get("predictions", []):
        x, y, w, h = pred["x"], pred["y"], pred["width"], pred["height"]
        cv2.rectangle(frame, (x, y), (x+w, y+h), (0, 255, 0), 2)
        cv2.putText(frame, f"{pred['class']} {pred['confidence']:.2f}",
                   (x, y-10), cv2.FONT_HERSHEY_SIMPLEX, 0.5, (0, 255, 0), 2)

    cv2.imshow("Detection", frame)
    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

cap.release()
cv2.destroyAllWindows()

With Supervision (Advanced Annotations):

from inference_sdk import InferenceHTTPClient
import supervision as sv
import cv2

client = InferenceHTTPClient(api_url="http://localhost:9001")

# Create annotators
box_annotator = sv.BoxAnnotator()
label_annotator = sv.LabelAnnotator()

cap = cv2.VideoCapture("rtsp://localhost:8554/cam0")

while True:
    ret, frame = cap.read()
    if not ret:
        break

    # Run inference
    result = client.infer(frame, model_id="rfdetr-small")

    # Convert to Supervision format
    detections = sv.Detections.from_inference(result)

    # Filter by confidence
    detections = detections[detections.confidence >= 0.5]

    # Annotate
    annotated = box_annotator.annotate(scene=frame.copy(), detections=detections)

    labels = [f"{class_name} {conf:.2f}"
              for class_name, conf in zip(detections['class_name'], detections.confidence)]
    annotated = label_annotator.annotate(scene=annotated, detections=detections, labels=labels)

    cv2.imshow("Detection", annotated)
    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

cap.release()
cv2.destroyAllWindows()

Troubleshooting

Server Not Starting:

# Check Docker logs
docker logs rf-inference

# Check if port 9001 is in use
sudo netstat -tlnp | grep 9001

# Restart the service
sudo systemctl restart roboflow.service

Model Not Loading:

# Check if model is in cache
ls -la /home/box/roboflow-cache/

# Manually load model
python download_models.py --api-url http://localhost:9001

# Check server logs
docker logs rf-inference | tail -50

Low Performance:

Ensure GPU is being used: Check docker logs rf-inference for TensorRT/CUDA messages
Try a smaller model: Use yolov11n-640 instead of rfdetr-medium
Reduce input resolution: Models use 640x640 by default
Check system resources: sudo tegrastats

Connection Errors:

# Verify server is accessible
curl http://localhost:9001/health

# Check firewall
sudo ufw status

# Test from another machine
curl http://<JETSON_IP>:9001/health

Best Practices

Model Caching: Models are cached locally - download once, use offline
GPU Acceleration: The server automatically uses TensorRT and CUDA when available
Confidence Thresholds: Adjust based on your use case (0.5 is a good default)
Batch Processing: Process multiple frames together when possible
Model Selection: Start with yolov11n-640 for speed, upgrade to rfdetr-small for accuracy
Resource Management: Monitor GPU memory and temperature during extended use

Additional Resources

Running Pre-trained Models

YOLOv8 via Docker (Alternative):

# Use pre-configured Ultralytics Docker container
docker pull ultralytics/ultralytics:latest-jetson-jetpack6
docker run -it --ipc=host --runtime=nvidia ultralytics/ultralytics:latest-jetson-jetpack6

Real-time Video Processing

Basic Video Stream

import cv2

def process_frame(frame):
    # Your processing logic here
    return frame

cap = cv2.VideoCapture(0)

while True:
    ret, frame = cap.read()
    if not ret:
        break

    processed = process_frame(frame)
    cv2.imshow('Video', processed)

    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

cap.release()
cv2.destroyAllWindows()

GPU-Accelerated Processing

import cv2
import numpy as np

# Create GPU matrices
gpu_frame = cv2.cuda_GpuMat()

cap = cv2.VideoCapture(0)

while True:
    ret, frame = cap.read()
    if not ret:
        break

    # Upload to GPU
    gpu_frame.upload(frame)

    # Process on GPU
    gpu_gray = cv2.cuda.cvtColor(gpu_frame, cv2.COLOR_BGR2GRAY)

    # Download result
    result = gpu_gray.download()

    cv2.imshow('Video', result)

    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

cap.release()
cv2.destroyAllWindows()

Stereo Vision

The Field Kit includes dual IMX219 cameras configured for stereo vision. Use the included stereo disparity script:

# Run stereo disparity from Field Kit repository
cd jetson-orin-nano-field-kit/apps/vision/roboflow
source venv/bin/activate
python run_stereo_disparity.py

Depth Estimation

Manual Stereo Vision Example:

import cv2
import numpy as np

# Initialize stereo matcher
stereo = cv2.StereoBM_create(numDisparities=16, blockSize=15)

# Capture from both cameras (CAM0 and CAM1)
cap_left = cv2.VideoCapture(0)   # CAM0 (left)
cap_right = cv2.VideoCapture(1)  # CAM1 (right)

# Or use RTSP streams
# cap_left = cv2.VideoCapture('rtsp://localhost:8554/cam0')
# cap_right = cv2.VideoCapture('rtsp://localhost:8554/cam1')

while True:
    ret_left, frame_left = cap_left.read()
    ret_right, frame_right = cap_right.read()

    if not (ret_left and ret_right):
        break

    # Convert to grayscale
    gray_left = cv2.cvtColor(frame_left, cv2.COLOR_BGR2GRAY)
    gray_right = cv2.cvtColor(frame_right, cv2.COLOR_BGR2GRAY)

    # Compute disparity
    disparity = stereo.compute(gray_left, gray_right)

    # Normalize for display
    disparity_normalized = cv2.normalize(disparity, None, 0, 255, cv2.NORM_MINMAX)

    cv2.imshow('Disparity', disparity_normalized.astype(np.uint8))

    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

cap_left.release()
cap_right.release()
cv2.destroyAllWindows()

Performance Optimization

Multi-threading

import threading
import queue
import cv2

class VideoCaptureThread:
    def __init__(self, src=0):
        self.cap = cv2.VideoCapture(src)
        self.q = queue.Queue()
        self.running = True

    def start(self):
        threading.Thread(target=self._reader, daemon=True).start()
        return self

    def _reader(self):
        while self.running:
            ret, frame = self.cap.read()
            if not ret:
                break
            if not self.q.empty():
                try:
                    self.q.get_nowait()
                except queue.Empty:
                    pass
            self.q.put(frame)

    def read(self):
        return self.q.get()

    def stop(self):
        self.running = False
        self.cap.release()

# Usage
cap = VideoCaptureThread(0).start()

while True:
    frame = cap.read()
    # Process frame
    cv2.imshow('Video', frame)

    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

cap.stop()
cv2.destroyAllWindows()

Batch Processing

import cv2
import numpy as np

def process_batch(frames):
    # Process multiple frames together
    results = []
    for frame in frames:
        # Your processing logic
        results.append(processed_frame)
    return results

# Collect frames
batch_size = 4
frames = []

cap = cv2.VideoCapture(0)

while True:
    ret, frame = cap.read()
    if not ret:
        break

    frames.append(frame)

    if len(frames) == batch_size:
        results = process_batch(frames)
        for result in results:
            cv2.imshow('Video', result)
            cv2.waitKey(1)
        frames = []

    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

cap.release()
cv2.destroyAllWindows()

import cv2

# Load Haar Cascade
face_cascade = cv2.CascadeClassifier(cv2.data.haarcascades + 'haarcascade_frontalface_default.xml')

cap = cv2.VideoCapture(0)

while True:
    ret, frame = cap.read()
    if not ret:
        break

    gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
    faces = face_cascade.detectMultiScale(gray, 1.1, 4)

    for (x, y, w, h) in faces:
        cv2.rectangle(frame, (x, y), (x+w, y+h), (255, 0, 0), 2)

    cv2.imshow('Faces', frame)

    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

cap.release()
cv2.destroyAllWindows()

Motion Detection

import cv2
import numpy as np

cap = cv2.VideoCapture(0)
background = None

while True:
    ret, frame = cap.read()
    if not ret:
        break

    gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
    gray = cv2.GaussianBlur(gray, (21, 21), 0)

    if background is None:
        background = gray
        continue

    diff = cv2.absdiff(background, gray)
    thresh = cv2.threshold(diff, 25, 255, cv2.THRESH_BINARY)[1]
    thresh = cv2.dilate(thresh, None, iterations=2)

    contours, _ = cv2.findContours(thresh.copy(), cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)

    for contour in contours:
        if cv2.contourArea(contour) < 500:
            continue
        (x, y, w, h) = cv2.boundingRect(contour)
        cv2.rectangle(frame, (x, y), (x+w, y+h), (0, 255, 0), 2)

    cv2.imshow('Motion', frame)

    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

cap.release()
cv2.destroyAllWindows()

Next Steps

Learn about Voice Assistant integration
Explore LLM capabilities for vision-language models
Check Troubleshooting for common vision issues
Review Good Guidance for optimization tips

Local Computer Vision with Roboflow

On this page
