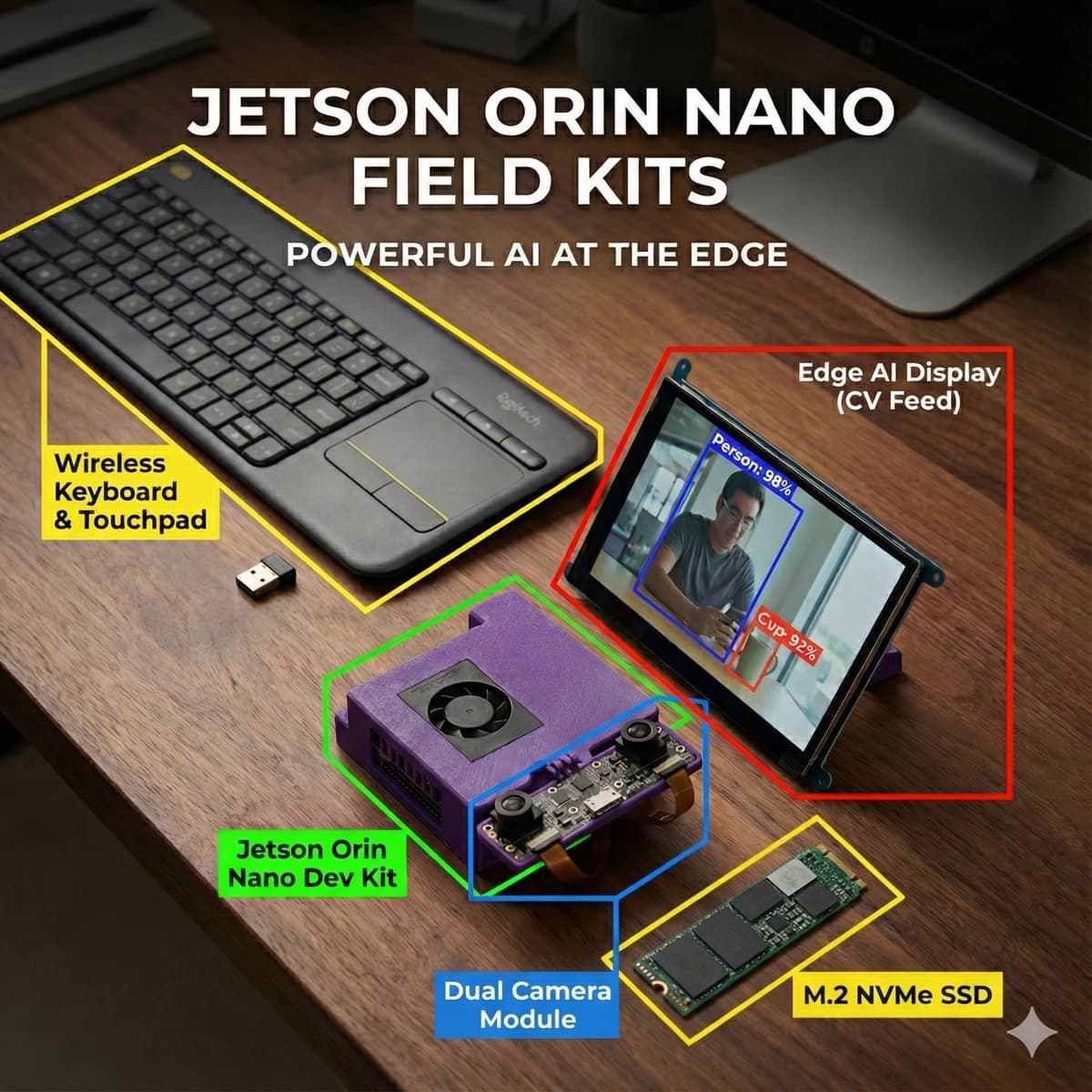

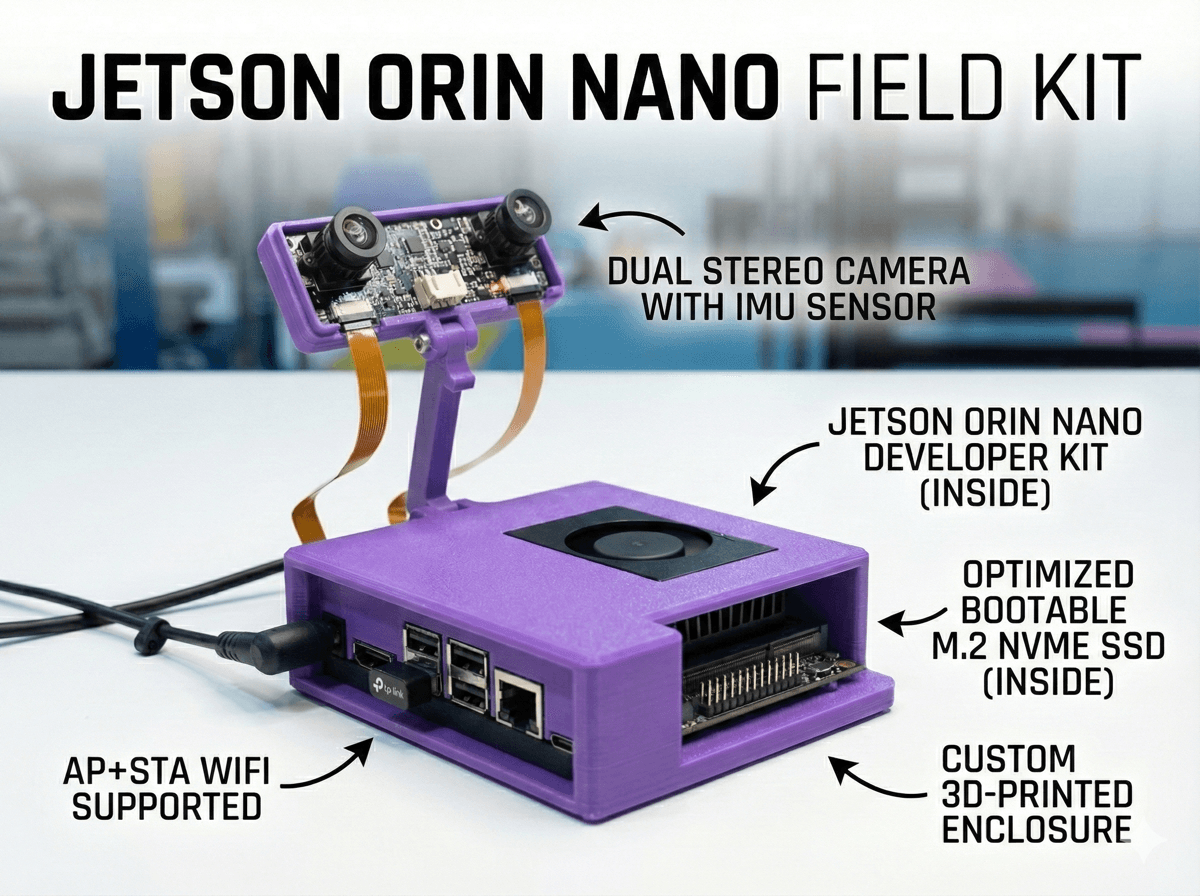

imply+infer Field Kit
Jetson Orin Nano Edition
Start running LLMs, vision models, and camera pipelines in minutes.
20+ AI apps ready to run at the edge, save 70+ hours of setup time.
What You Need For Edge AI
Jetson Orin Nano Super
100 TOPS AI performance
Bootable NVMe SSD
Pre-configured OS + models
Stereo Camera
Dual IMX219, plug-and-play
3D Printed Case
With camera mount
GPU Optimized Libraries
For vision AI
AP + STA WiFi
For connectivity
Integrated With
Pre-configured and tested with industry-leading edge AI frameworks. All CUDA-optimized and ready to run.

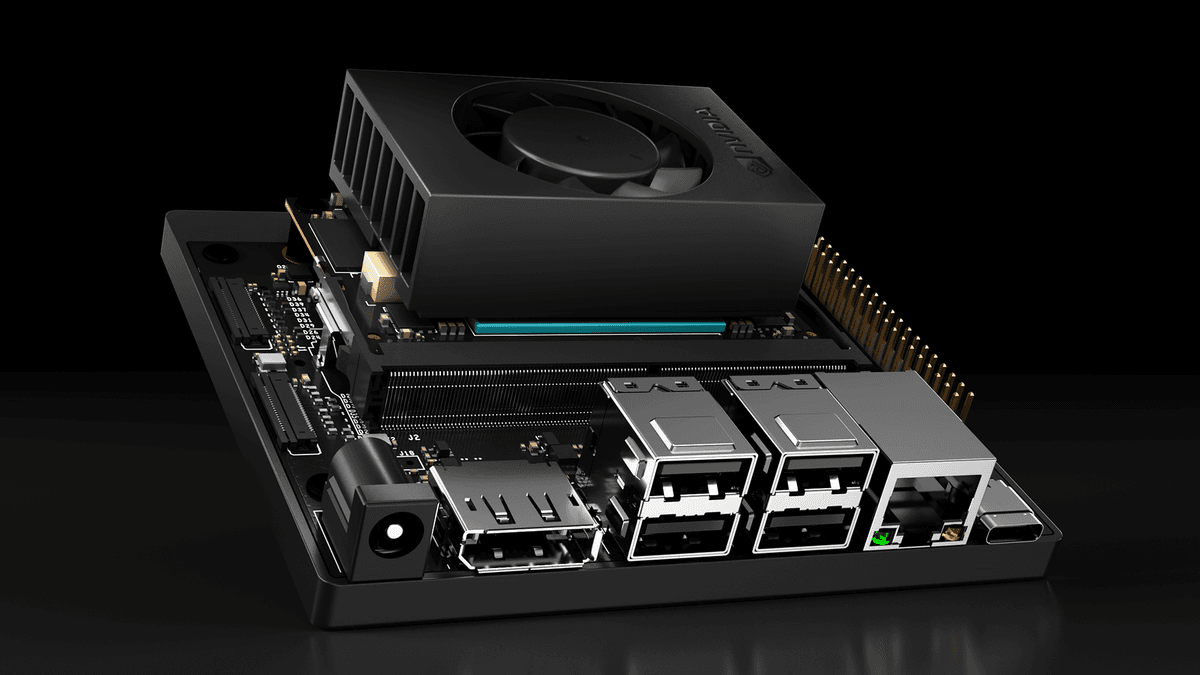

Jetson Orin Nano Super Developer Kit
Jetson Orin Nano Super Developer Kit
At the heart of the kit lies the NVIDIA Jetson Orin Nano Super Developer Kit, delivering 100 TOPS of AI performance in a compact form factor.
Core Specifications
- AI Performance100 TOPS (INT8)
- GPU1024-core Ampere
- CPU6-core Arm Cortex-A78AE
- Memory8GB LPDDR5

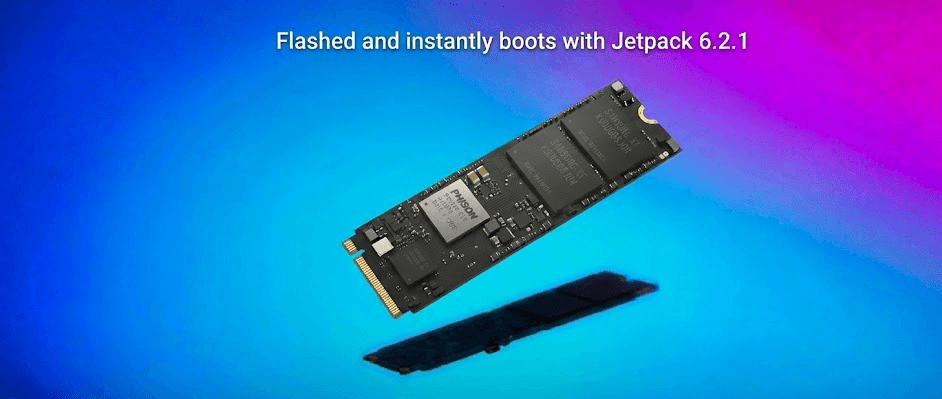

Pre-configured NVMe SSD
Pre-configured NVMe SSD
Bootable NVMe SSD with optimized system image. Skip 40-120 hours of setup, compilation, and configuration.
Save 40-120 Hours
Start building on the Jetson Orin Nano immediately instead of the 100+ actions required to get it running optimally.
Optimized Frameworks
PyTorch, llama.cpp, TensorRT compiled for Jetson architecture
NVMe Speeds
2400-4000 MB/s read/write with optimized boot partitions
Ready-to-Run Apps
Ollama, YOLO, Whisper, and 20+ applications pre-installed

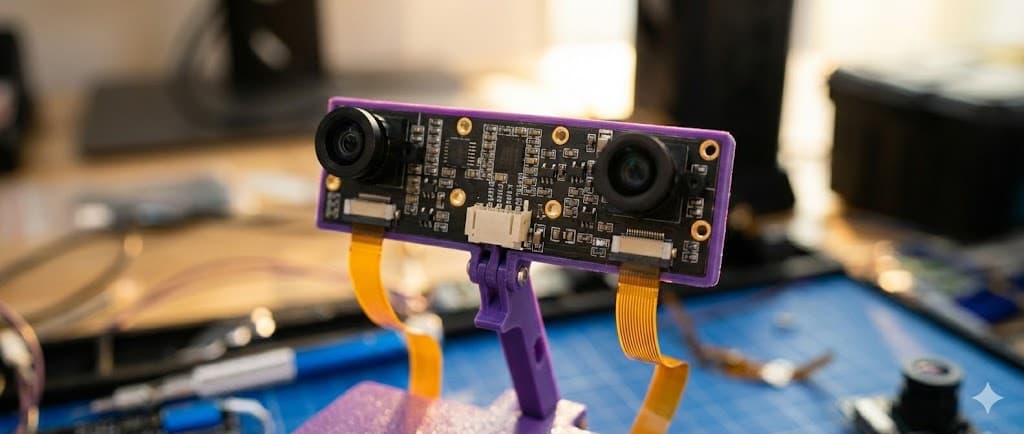

Dual IMX219 Stereo Camera
Dual IMX219 Stereo Camera
8MP stereo camera module with Sony IMX219 sensors. Depth capability enabled via stereo vision - ideal for computer vision requiring spatial awareness. Integrated IMU sensor provides 6-axis motion data (accelerometer + gyroscope) for image stabilization, motion tracking, and sensor fusion. Pre-configured with Argus, GStreamer, and RTSP/WebRTC pipelines tuned for ML use.
Camera Specs
- SensorSony IMX219
- Resolution8MP (3280×2464)
- Field of View160°
- InterfaceMIPI CSI-2
IMU Sensor
- Type6-Axis IMU
- Accelerometer±2/4/8/16g
- Gyroscope±250/500/1000/2000°/s
- InterfaceI²C/SPI
Enables image stabilization, motion tracking, and sensor fusion for SLAM applications.
Software Support
Perfect for object detection, 3D depth perception, SLAM, and vision-language models with motion-aware processing.
Dual-Mode Wireless Connectivity
Dual-Mode Wireless Connectivity
AP + STA Parallel Mode
Simultaneous Hotspot & Internet Connection
The Field Kit is optimized to run both Access Point (AP) and Station (STA) WiFi modes in parallel. This incredible feature allows for a seamless hotspot for direct device control while maintaining an internet connection via an external network.
Station Mode (STA)
Connects to home/office WiFi or mobile hotspots for internet access, updates, and telemetry.
Access Point (AP)
Broadcasts a dedicated network for direct low-latency control from your laptop or tablet.
Optional High-Gain Antenna
Enhance range and throughput with the optional TP-Link AC600 USB WiFi adapter add-on.

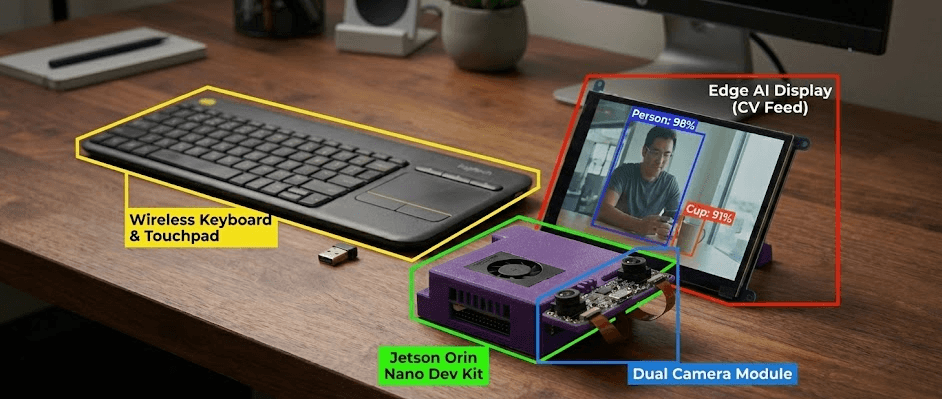

Complete Workstation Setup
Complete Workstation Setup
Complete field-ready setup with 3D printed protective case and integrated camera mount.
3D Printed Case
Protective enclosure with camera mount
7" LCD Display
Portable display with DP→HDMI adapter
Keyboard + Mouse
Wireless 2.4GHz combo, plug-and-play
Complete Standalone System
Unbox, power on, and start building. The kit includes everything needed to run AI workloads. LCD display and keyboard/mouse are optional addons for a full workstation experience.
Free & Open Source Software Stack
Free & Open Source Software Stack
100% Open Source
The entire software stack, including OS images and configurations, is free and open to modify.
Modular Stack
Dockerized & Adaptable
Development Time
Skip the configuration hell.
Developer Ready
Cloning is all it takes.
Fork it.
Build your own edge AI app on the Jetson Orin.
